DY21B06，DY21B08，DY21B09，DY21B06PDY2000（B/BG）智能變送控制數字/光柱顯示儀表商品描述：

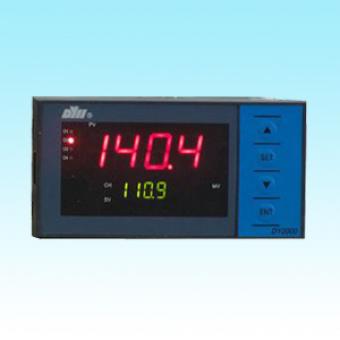

DY2000智能變送控制數字/光柱顯示儀表
一、 主要特點：
1. 具有控制儀表的所有特點。
2. 可由面板光柱顯示變送的比例值。
3. （4～20）mA或（1～5）V變送輸出。
二、 DY2000智能變送控制數字/光柱顯示儀表型譜
型 譜
|
說 明
|
DY
|
大延牌智能型儀表
|
|
|
2
|
SMT+開關電源(AC:85V～265V 50/60Hz)
|
|
|
1
|
寬×高×深：(160×80×115) mm
|
2
|
(80×160×115) mm
|
4
|
(48×48×100) mm ＊
|
6
|
(96×48×112) mm
|
7
|
(72×72×100) mm ＊
|
8
|
(48×96×112) mm
|
9
|
(96×96×112) mm
|
|
|
B
|
變送控制+位式控制
|
GB
|
變送控制+位式控制+單光柱 ＊
|
|
|
0
|
報警（O2）+報警（O3）+（4～20）mA變送輸出（O4）
|
1
|
報警（O2）+報警（O3）+（1～5）V變送輸出（O4）
|
2
|
上限報警（O1）+報警（O2）+報警（O3）+（4～20）mA變送輸出（O4）
|
3
|
上限報警（O1）+報警（O2）+報警（O3）+（1～5）V變送輸出（O4）
|
4
|
通訊（O1）+報警（O2）+報警（O3）+（4～20）mA變送輸出（O4）
|
5
|
通訊（O1）+報警（O2）+報警（O3）+（1～5）V變送輸出（O4）
|
9
|
用戶特殊要求的輸出
|
| |
0
|
輸入信號類型由用戶自由選擇，出廠時設定在（4～20）mA輸入
|
1
|
適配K、B、J、E、T、R、S熱電偶
|
2
|
適配Pt100、Cu50熱電阻
|
3
|
適配霍爾變送器mV
|
4
|
適配遠傳壓力表（30～350）Ω
|
6
|
適配(4～20)mA輸入，量程自由設定
|
8
|
適配(1～5)V輸入，量程自由設定
|
9
|
用戶特殊要求的分度號
|
|
|
|
缺省為220VAC供電
|
D
|
24VDC供電
|
|
|
|
缺省為無附加24VDC饋電電源輸出
|
P
|
附加24VDC饋電電源輸出
|
|
|
缺省為不帶串行通訊接口
|
2
|
RS232串行通訊接口
|
4
|
RS485串行通訊接口（帶隔離）
|
| |
M
|
Modbus協議
|
| |
|
|
|
|
|
|
|
|
|
|
|
＊ (48×48×100)mm (72×72×100)mm規格，訂貨時請向廠家咨詢。
＊ 報警（
O2），報警（
O3）用戶可自行組態為上限報警或下限報警。
＊ 光柱的儀表僅有兩種外型尺寸：(160×80×115)mm (80×160×115)mm
＊ 特殊要求請與廠家聯系
