型號
|
代碼
|
說明
|
|||||||
|
SWP-T61T
|
|
|
|
|
|
|
|
|

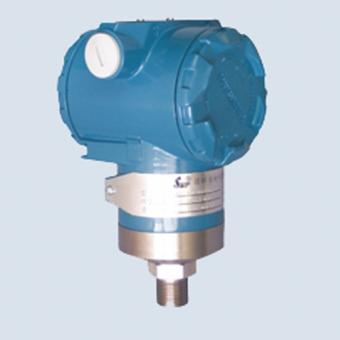

壓力變送器
|
|
壓力類型
|
GP
|
|
|
|
|
|
|
|
表壓
|
|
AP
|
|
|
|
|
|
|
|
絕壓
|
|
|
壓力測量
SWP-T61TGP/ SWP-T61AP |
|
3
|
|
|
|
|
|
|
1.3～7.5kPa 1.3～7.5kPa
|
|
|
4
|
|
|
|
|
|
|
6.2～37.4kPa 6.2～37.4kPa
|
|
|
|
5
|
|
|
|
|
|
|
31.1～186.8kPa 31.1～186.8kPa
|
|
|
|
6
|
|
|
|
|
|
|
117～690kPa 117～690kPa
|
|
|
|
7
|
|
|
|
|
|
|
345～2068kPa 345～2068kPa
|
|
|
|
8
|
|
|
|
|
|
|
1170～6890kPa 1170～6890kPa
|
|
|
|
9
|
|
|
|
|
|
|
3480～20680kPa 不提供
|
|
|
變送輸出
|
|
|
E
|
|
|
|
|
|
4-20mA，線性，模擬/阻尼可調
|
|
|
|
N
|
|
|
|
|
|
4-20mA，線性，數字型
|
|
|
|
|
S
|
|
|
|
|
|
4-20mA，智能型，HART協議通訊
|
|
|
過程連接方式/材料
|
|
|
|
2B
|
|
|
|
|
M20×1.5陽螺紋 不銹鋼
|
|
|
|
|
2C
|
|
|
|
|
1/2NPT陽螺紋 不銹鋼
|
|
|
|
|
|
2D
|
|
|
|
|
G1/2陽螺紋 不銹鋼
|
|
|
|
|
|
2E
|
|
|
|
|
1/2NPT陰螺紋 不銹鋼
|
|
|
|
|
|
T
|
|
|
|
|
特殊要求
|
|
|
顯示表頭（不帶表頭此欄不填）
|
|
|
|
|
M1
|
|
|
|
模擬刻度，線性表頭，0-100%刻度
|
|
|
|
|
|
M3
|
|
|
|
液晶顯示，線性表頭，0-100%，用戶可選
|
|
|
防爆類型
（普通型此欄不填） |
|
|
|
|
|
|
|
i
|
本安型，防爆等級Exia Ⅱ CT6
|
|
|
|
|
|
|
|
|
d
|
隔爆型，防爆等級Exd Ⅱ BT6
|
|
| 注：E型最小量程URL/6;N、S型最小量程URL/50 | |||||||||
