型號
|
代碼
|
|
說明
|
|||||||||
|

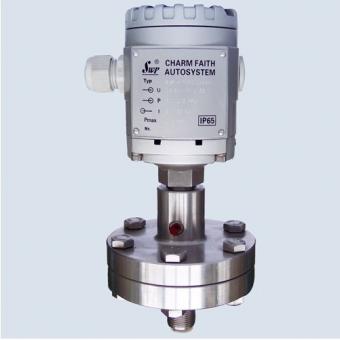

SWP-T204
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜壓力變送器
|
|
SWP-T214
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜壓力變送器（溫度隔離型）
|
|
SWP-T224
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜壓力變送器（毛細管遠傳型）
|
|
變送輸出
|
G
|
|
|
|
|
|
|
|
|
|
|
4-20mA，線性，模擬/阻尼可調
|
|
S
|
|
|
|
|
|
|
|
|
|
|
4-20mA，智能型，HART協議通訊
|
|
|
隔離膜片材料
|
|
1
|
|
|
|
|
|
|
|
|
|
316L不銹鋼
|
|
|
2
|
|
|
|
|
|
|
|
|
|
哈氏合金C
|
|
|
|
5
|
|
|
|
|
|
|
|
|
|
鉭
|
|
|
|
7
|
|
|
|
|
|
|
|
|
|
帶PTFE薄膜的316L不銹鋼
|
|
|
|
9
|
|
|
|
|
|
|
|
|
|
特殊要求
|
|
|
過程連接材料
|
|
|
3
|
|
|
|
|
|
|
|
|
1Cr8Ni9Ti不銹鋼
|
|
|
|
5
|
|
|
|
|
|
|
|
|
316L不銹鋼
|
|
|
|
|
9
|
|
|
|
|
|
|
|
|
特殊要求
|
|
|
過程連接方式
|
|
|
|
A
|
|
|
|
|
|
|
|
M20×1.5陽螺紋（非焊接螺紋連接）
|
|
|
|
|
E
|
|
|
|
|
|
|
|
無法蘭托架
|
|
|
|
|
|
G
|
|
|
|
|
|
|
|
G1/2A陽螺紋（非焊接螺紋連接）
|
|
|
|
|
|
Y
|
|
|
|
|
|
|
|
特殊要求
|
|
|
中介液
|
|
|
|
|
A
|
|
|
|
|
|
|
硅油
|
|
|
|
|
|
E
|
|
|
|
|
|
|
甘油
|
|
|
|
|
|
|
G
|
|
|
|
|
|
|
高溫油+溫度隔離器
|
|
|
|
|
|
|
N
|
|
|
|
|
|
|
高溫油+毛細管
|
|
|
|
|
|
|
Y
|
|
|
|
|
|
|
特殊要求
|
|
|
外殼
|
|
|
|
|
|
A
|
|
|
|
|
|
鋁外殼 無現場指示 防護等級IP65
|
|
|
|
|
|
|
B
|
|
|
|
|
|
鋁外殼 帶液晶現場指示 防護等級IP65
|
|
|
|
|
|
|
|
C
|
|
|
|
|
|
鋁外殼 帶模擬刻度0-100%顯示現場指示 防護等級IP65
|
|
|
精度等級
|
|
|
|
|
|
|
1
|
|
|
|
|
0.1
|
|
|
|
|
|
|
|
2
|
|
|
|
|
0.2
|
|
|
|
|
|
|
|
|
5
|
|
|
|
|
0.5
|
|
|
|
|
|
|
|
|
9
|
|
|
|
|
特殊要求
|
|
|
測量范圍
|
|
|
|
|
|
|
|
|
|
|
|
見T20標準量程表
|
|
|
|
|
|
|
|
|
Y
|
|
|
|
非標準量程
|
|
|
傳感器類型
|
|
|
|
|
|
|
|
|
C
|
|
|
陶瓷電容傳感器
|
|
|
|
|
|
|
|
|
|
S
|
|
|
擴散硅傳感器
|
|
|
防爆類型
（普通型此欄不填） |
|
|
|
|
|
|
|
|
|
i
|
|
本安型，防爆等級Exia Ⅱ CT6
|
|
|
|
|
|
|
|
|
|
|
d
|
|
隔爆型，防爆等級Exd Ⅱ BT6
|
|
|
毛細管長度
|
|
|
|
|
|
|
|
|
|
|
m
|
只限于SWP-T224
|
