名稱直徑
DN |
額定壓力
PN |
接口直徑
A |
膜片直徑
C |
密封凹槽直徑
B |
推薦最小測量值
|
|
11/2”
|
4MPa
|
50.5mm
|
30
|
43.5
|
0.04MPa
|
|
2”
|
4MPa
|
64mm
|
36
|
56.5
|
0.02MPa
|
|
型號
|
代碼
|
|
說明
|
|||||||||
|

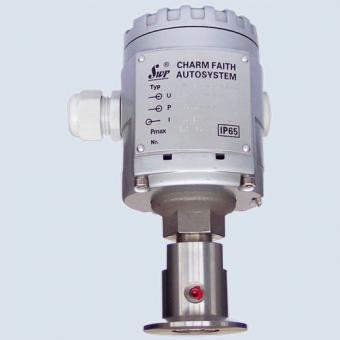

SWP-T205
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜壓力變送器
|
|
SWP-T215
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜壓力變送器（溫度隔離型）
|
|
SWP-T225
|
|
|
|
|
|
|
|
|
|
|
|
多功能隔膜壓力變送器（毛細管遠傳型）
|
|
變送輸出
|
G
|
|
|
|
|
|
|
|
|
|
|
4-20mA，線性，模擬/阻尼可調
|
|
S
|
|
|
|
|
|
|
|
|
|
|
4-20mA，智能型，HART協議通訊
|
|
|
隔離膜片材料
|
|
1
|
|
|
|
|
|
|
|
|
|
316L不銹鋼
|
|
|
2
|
|
|
|
|
|
|
|
|
|
哈氏合金C
|
|
|
|
5
|
|
|
|
|
|
|
|
|
|
鉭
|
|
|
|
7
|
|
|
|
|
|
|
|
|
|
帶PTFE薄膜的316L不銹鋼
|
|
|
|
9
|
|
|
|
|
|
|
|
|
|
特殊要求
|
|
|
過程連接材料
|
|
|
3
|
|
|
|
|
|
|
|
|
1Cr8Ni9Ti不銹鋼
|
|
|
|
5
|
|
|
|
|
|
|
|
|
316L不銹鋼
|
|
|
|
|
9
|
|
|
|
|
|
|
|
|
特殊要求
|
|
|
過程連接方式
|
|
|
|
A
|
|
|
|
|
|
|
|
衛生級卡箍11/2”
|
|
|
|
|
E
|
|
|
|
|
|
|
|
衛生級卡箍2”
|
|
|
|
|
|
Y
|
|||||||||
